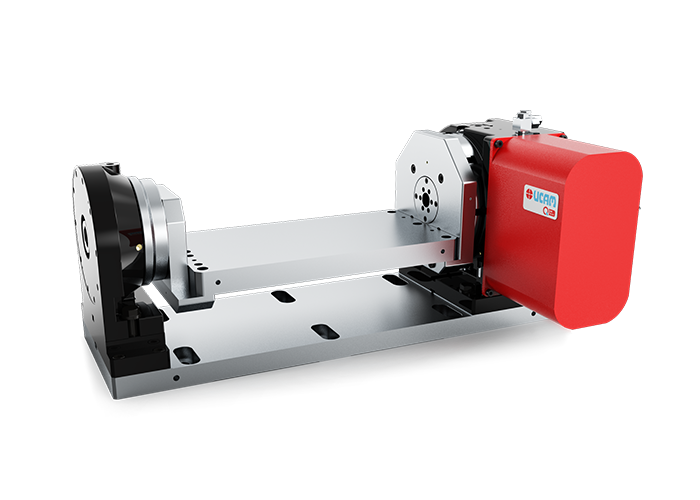

URPQ 250 HS
Right-Hand Rotary Production System
High-performance modular production solution delivering quick set-up changes and increased clamping torque for high-volume manufacturing environments.
Product Features
High Clamp Torque
Modular Design
Pneumatic and Hydraulic Clamping
Rigid Construction
Rotary Union Mounting
Product Video
Engineered for heavier parts and high-torque applications, this hydraulic model delivers consistent clamping strength and rigid support. Suited for batch production of large components where precision and repeatability are critical.
Applications
SPECIFICATIONS
| DIMENSION | UNITS | URPQ 250 HS | |
|---|---|---|---|
| Turn Table Diameter | mm | Ø250 | |
| Table Centre Height | mm | - | |
| Turn Table Diameter h7 (without table top) | mm | - | |
| Table Height | mm | - | |
| Centre Bore Diameter H7 | mm | - | |
| T-Slot Size - Reference Slots H7 | mm | - | |
| T-Slot Size - Other Slots H8 | mm | - | |
| T-Slot Size - Other Slots H12 | mm | - | |
| Guide Block Width h6 | mm | 18 | |
| Through Bore Diameter | mm | - | |
| Swing | mm | Ø310 | |
| OPERATIONAL | |||
| Servo Motor Torque | Nm | 6 | |
| Speed Reduction Ratio | - | 1:90 | |
| Table Rotation Speed - (Motor @ 2000rpm) | rpm | - | |
| Table Rotation Speed - (Motor @ 4000rpm) | rpm | - | |
| Table Rotation Speed - (Motor @ 3000rpm) | rpm | 33.33 | |
| Tilting Range | deg | - | |
| Table Gyration Angle / Pulse | deg | 0.001° | |
| Cooling System | - | ||
| LOAD DATA | |||
| Load carring capacity | kg | 350 | |
| Load carring capacity - Vertical | kg | - | |
| Load carring capacity - Horizontal | kg | - | |
| Load carring capacity - Vertical with Tailstock Support | kg | - | |
| Max Thrust load capacity - Horizontal | kg | - | |
| Max Thrust load capacity - Vertical | kg | - | |
| Tilting Moment - Horizontal (F x L) | Nm | 2000 | |
| Tilting Moment - Vertical (F x L) | Nm | - | |
| Allowable Work Inertia (%) | kg.m² | 2.8 | |
| Max. Driving Torque ($$) | Nm | 300 | |
| URPǪ 250HS RH | URPǪ 250HS RP | ||
| Clamp Torque (Pneumatic @5 Bar) | Nm | - | 650 |
| Clamp Torque (Pneumatic @5 Bar) - Tilt Axis | Nm | - | - |
| Clamp Torque (Hydraulic @30 Bar) | Nm | 1500 | - |
| Clamp Torque (Hydraulic @30 Bar) - Tilt Axis | Nm | - | - |
| Clamp Torque (Hydraulic @40 Bar) | Nm | - | - |
| Clamp Torque (Hydraulic @55 Bar) | Nm | - | - |
| Clamp Torque (Hydraulic @60 Bar) | Nm | - | - |
| ACCURACY | |||
| Indexing Accuracy* | Arc Sec | ±15” | |
| Indexing Accuracy* - Tilt Axis | Arc Sec | - | |
| Repeatability | Arc Sec | 6” | |
| Repeatability - Tilt Axis | Arc Sec | - | |
| OVERALL WEIGHT | |||
| Net Weight | kg | - | |
