ENGINEERING EXCELLENCE. EXACTLY.
UCAM, Leader in India for CNC Rotary tables with the “MAKE IN INDIA FOR THE WORLD” philosophy offers technologically advanced machine tool sub-assemblies, sub systems along with rotary tables to the world market.

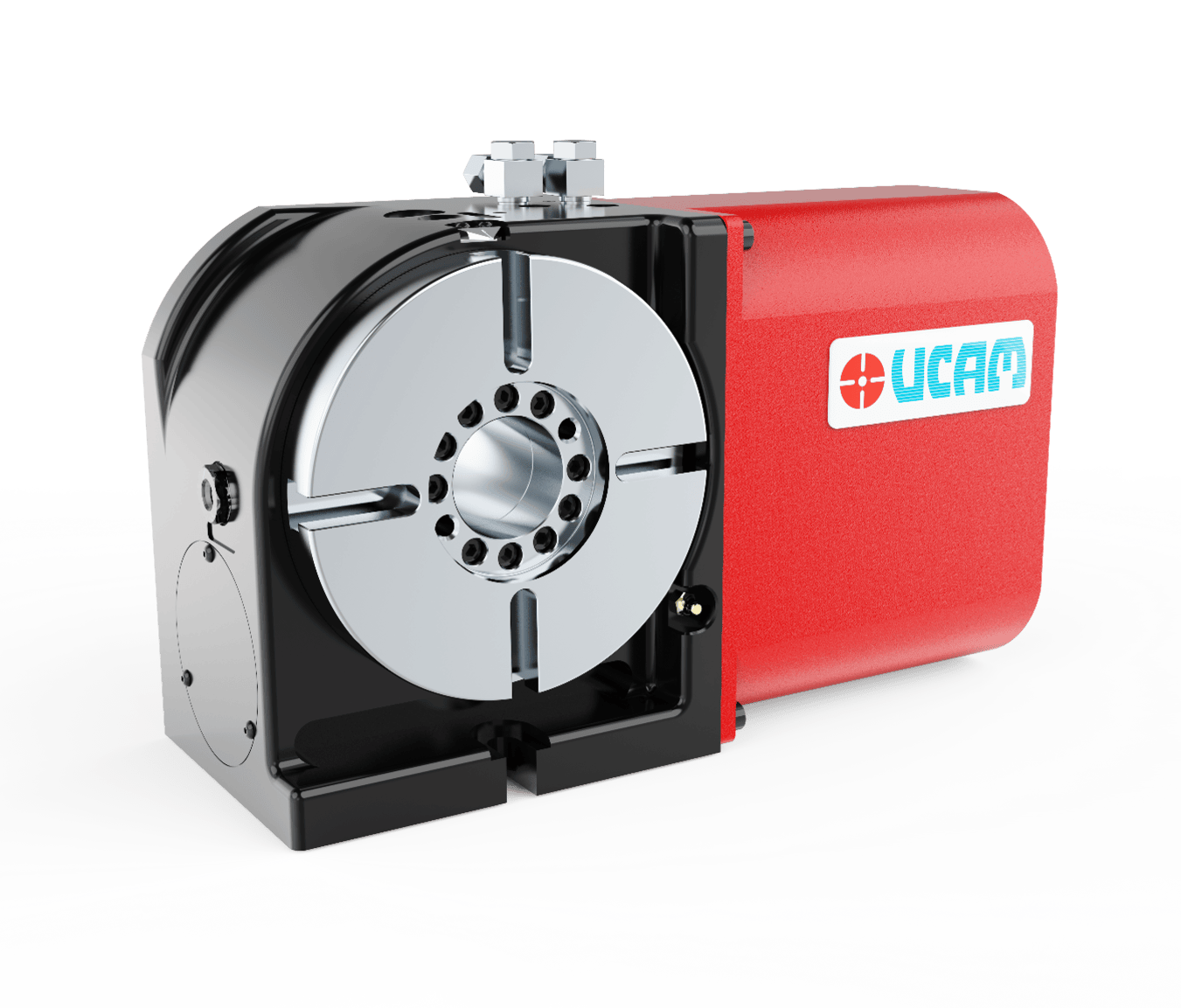

URX Series CNC ROTARY TABLE
The new CNC Rotary Table from UCAM has got higher speed and higher clamping torque. Thus making it suitable for machining complex components like turbine blades, when used in synchronous with machine axes.The new CNC rotary table URX Series has got better aesthetics. Further provides higher productivity and are available with Right Hand, Left Hand or Rear Motor mounting arrangement.
1. Pneumatic / Hydraulic Clamping
2. Pre Loaded Axial Radial Roller Bearing
3. Gear Mechanism – Motor to Worm Shaft
4. Dual Lead Worm Gear set
5. Vertical / Horizontal Mounting

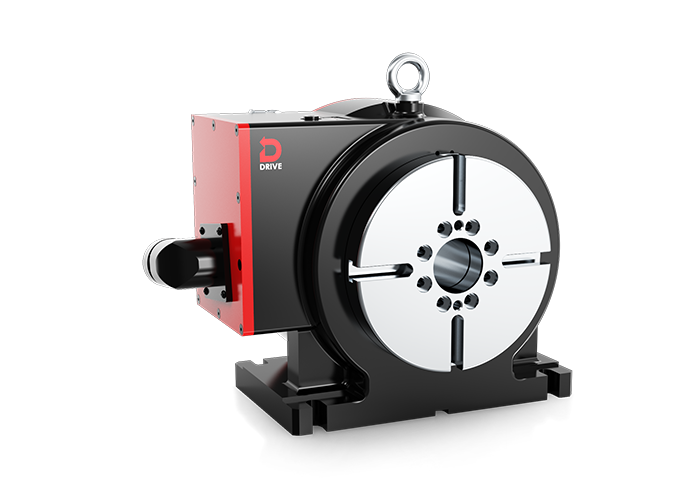

DIRECT DRIVE ROTARY TABLE
Direct Drive Rotary Table are directly driven from the motor (High Torque Motors). Direct drive rotary table has no worm gear and hence zero backlashes. These tables are used in applications which require high acceleration/deceleration, eg. Blade machining. Also on high-speed drill tap centres where indexing time is very crucial.
1. Dynamic Performance
2. Higher Acceleration / Deceleration
3. Higher RPM
4. Zero Backlash
5. Pre Loaded Axial Radial Roller Bearing
6. Direct Measurement for Precision Positioning

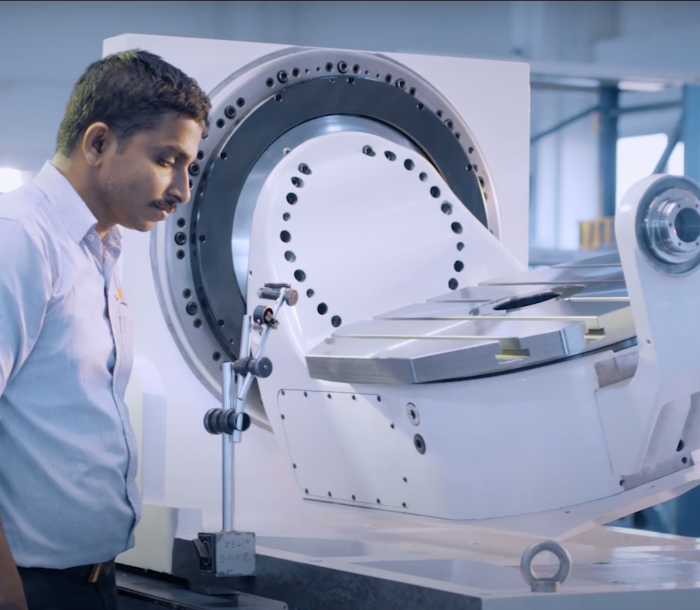

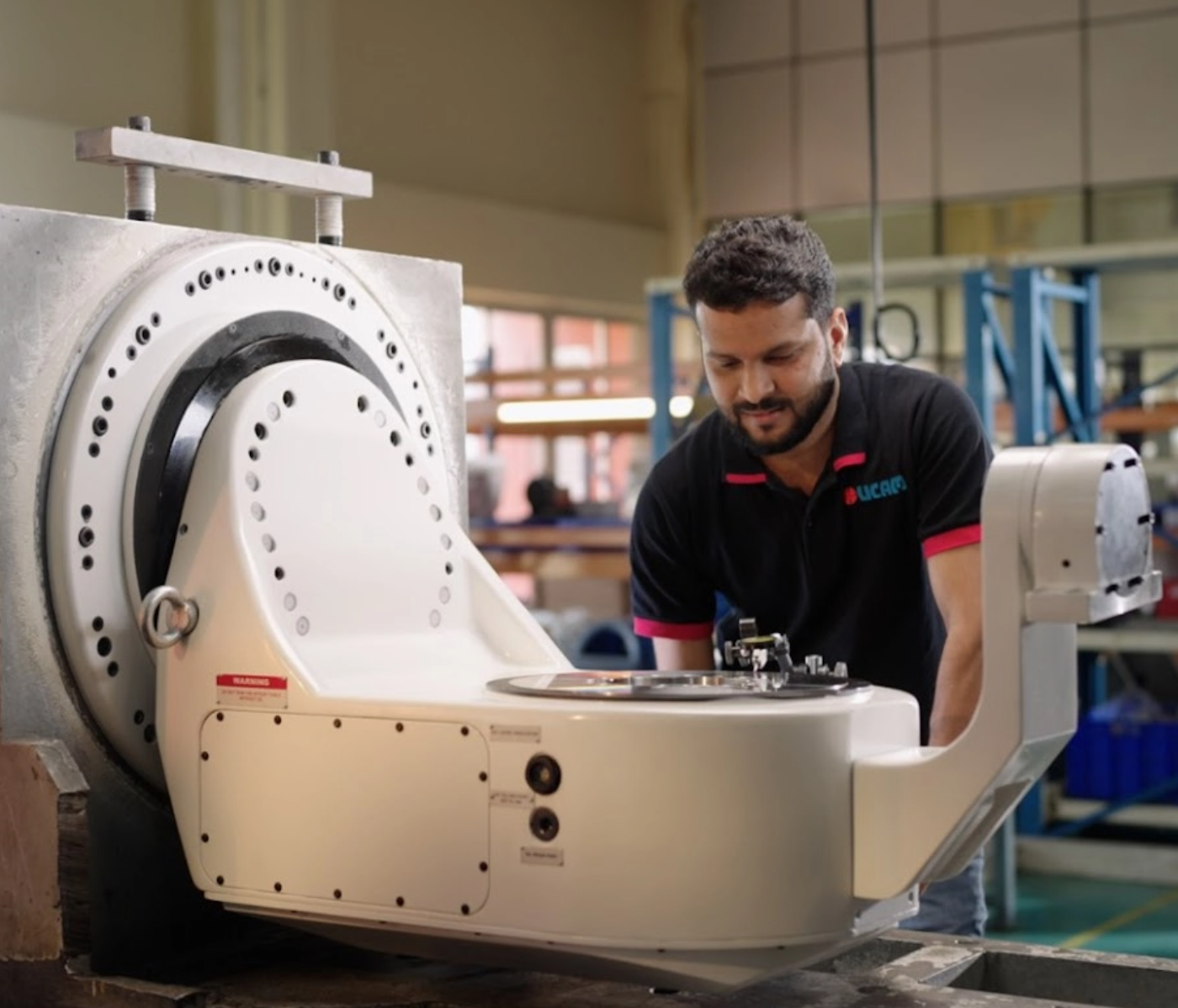

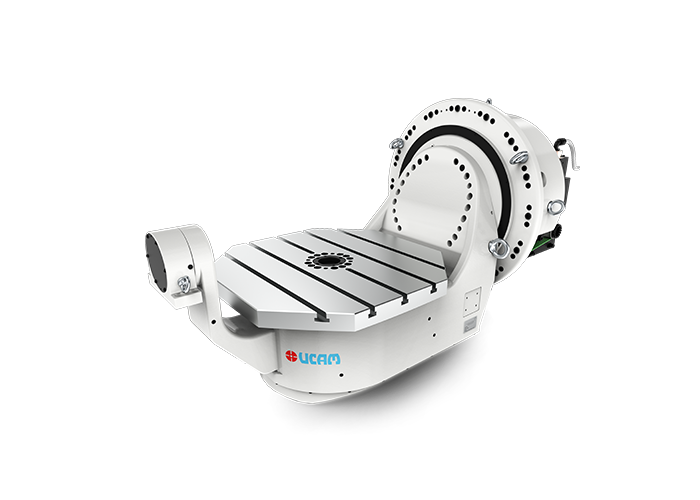

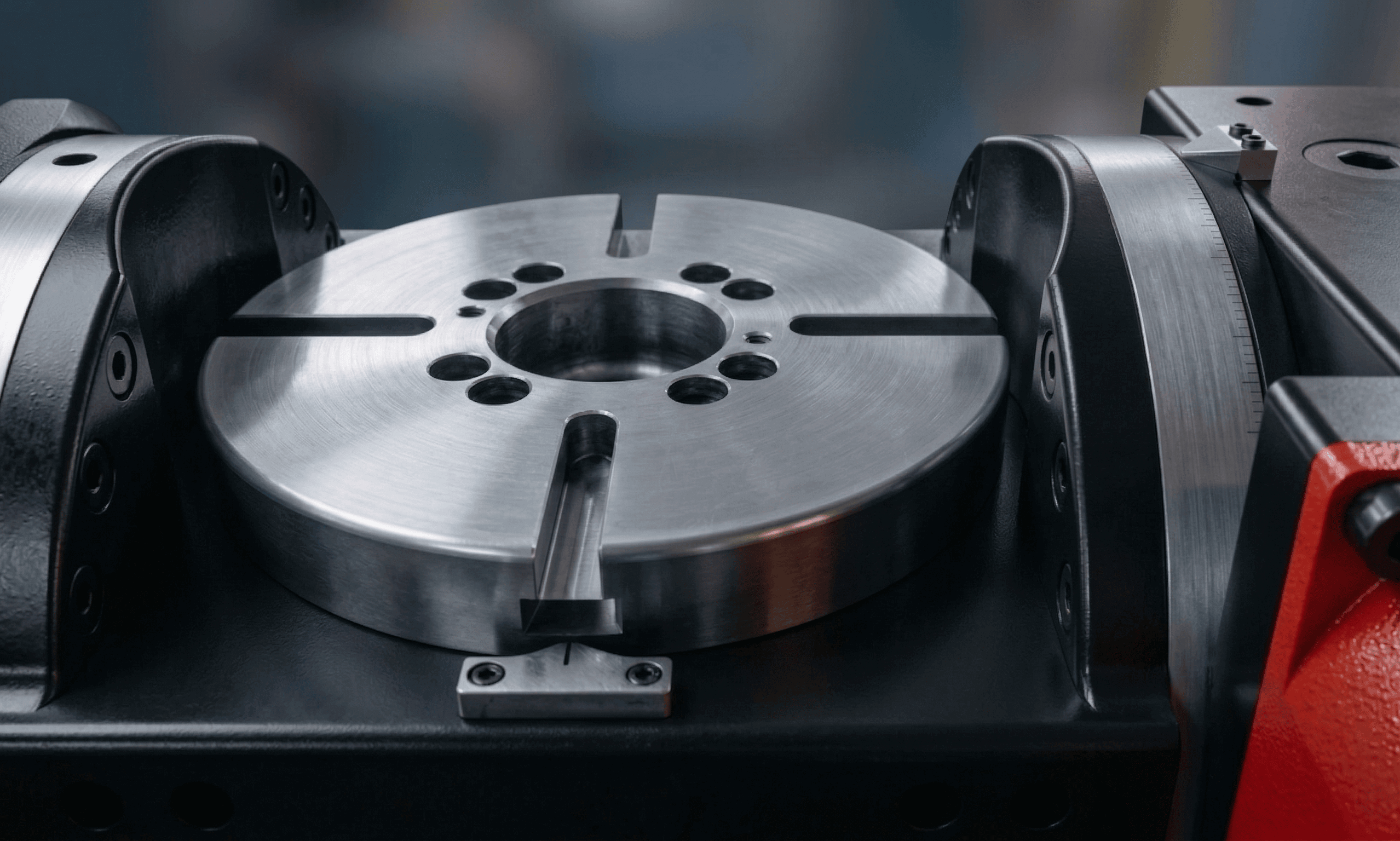

STANDARD TILTING ROTARY TABLE
CNC Tilting Rotary Tables are two axes (4th & 5th Axes) units and can rotate the component in two axes making a machine capable of accessing the areas which can not be reached with only 3 axes. Tilting tables can also interpolate with machine axes to generate profile such as impellers. Using Tilting Rotary Table a standard 3 axes machine can be converted into a 5 axes machine.
1. Pneumatic/Hydraulic Clamping
2. Pre-Loaded Axial Radial Roller Bearing
3. Dual Lead Worm Gear set

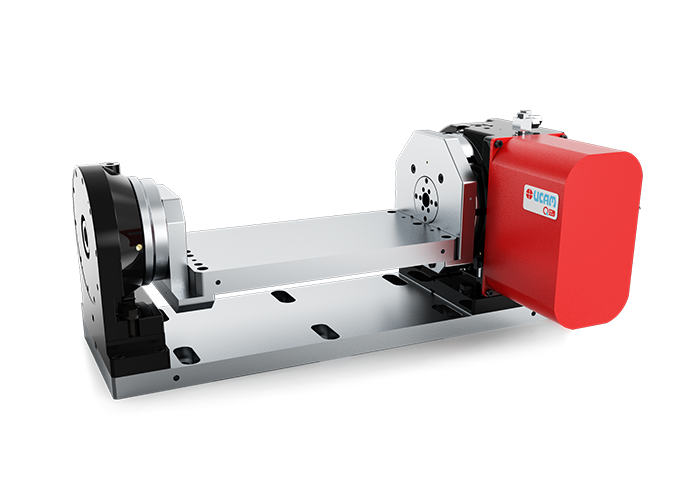

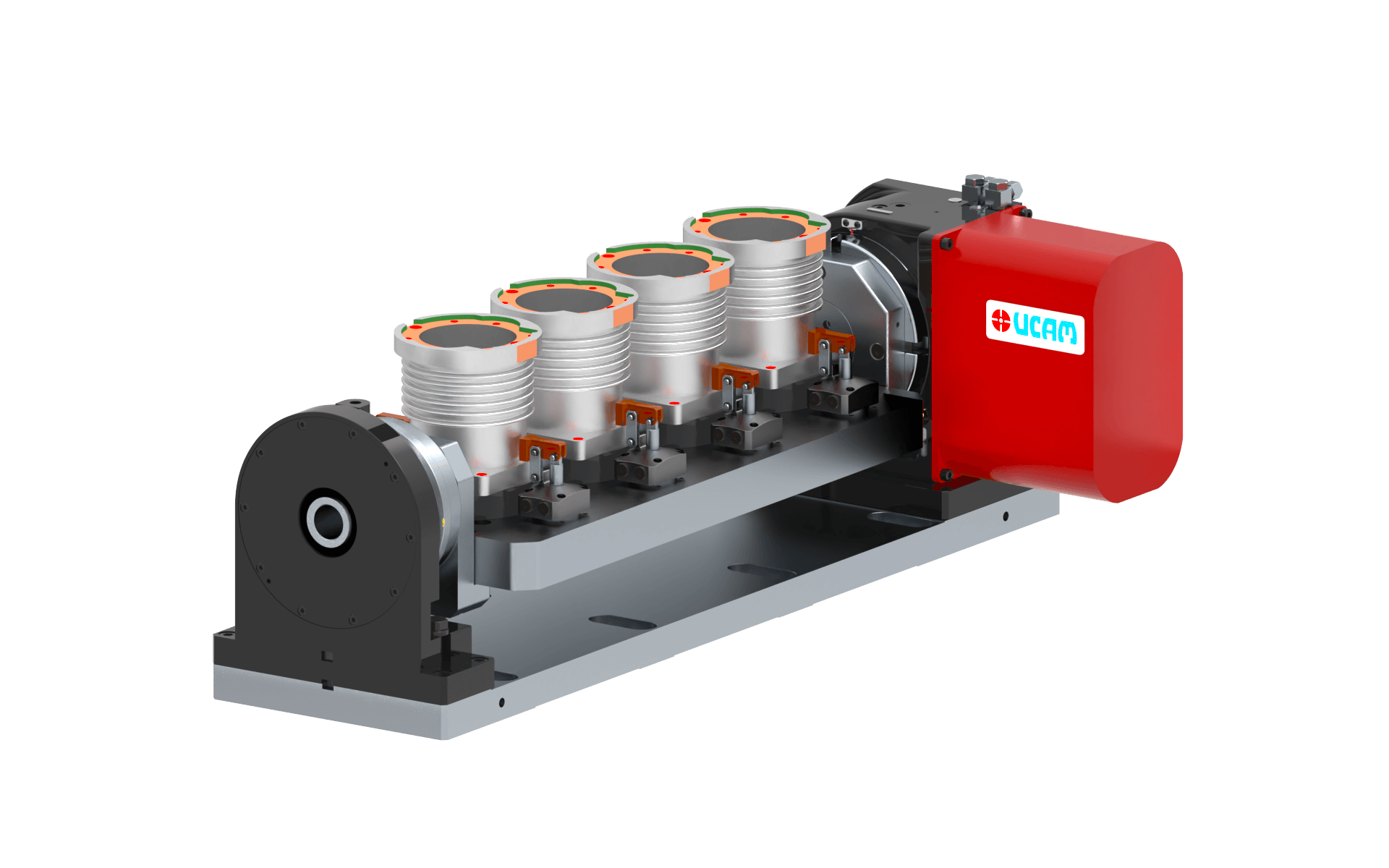

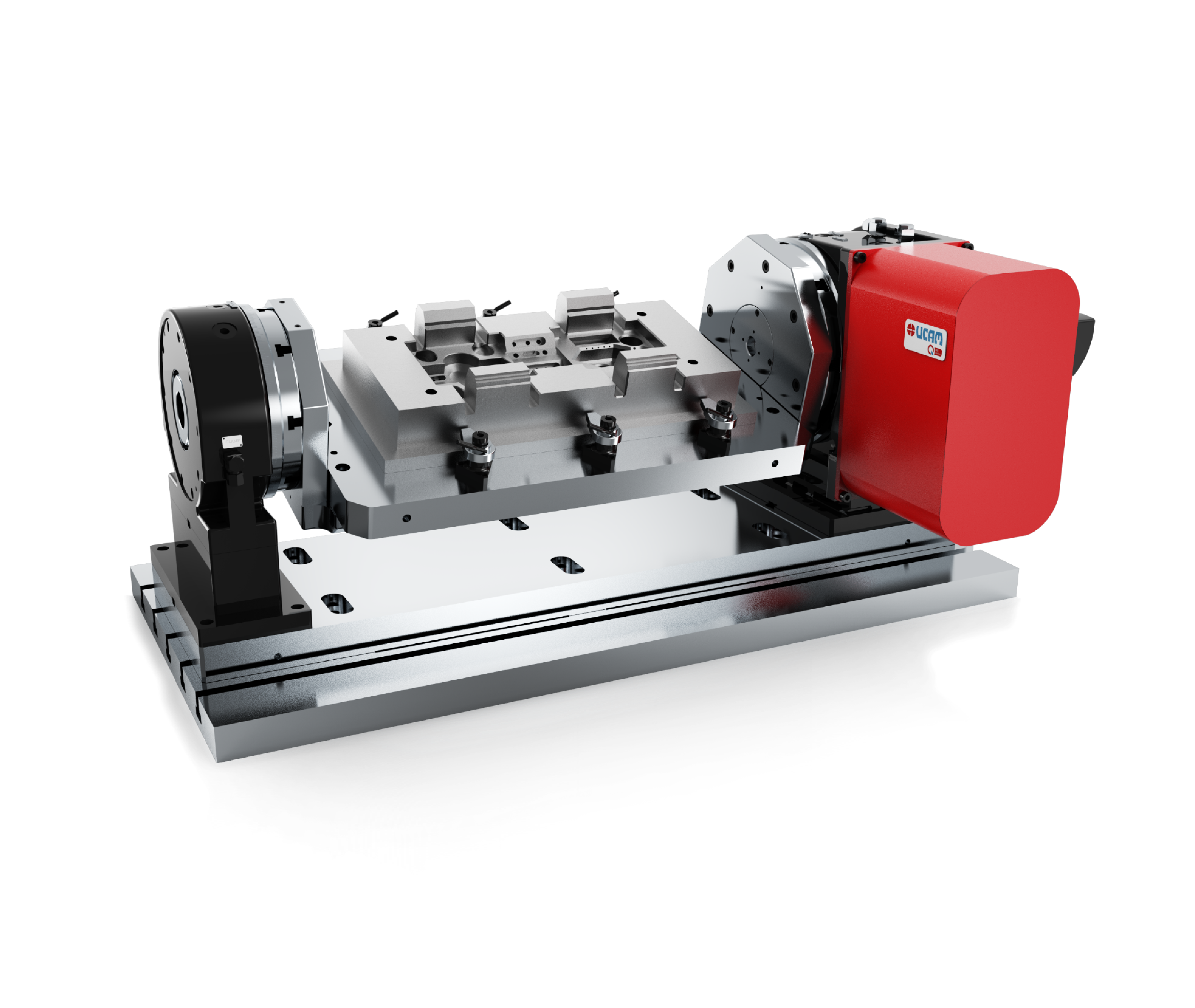

ROTARY PRODUCTION SYSTEM
UCAM makes rotary production system. It gives total solution for the machine shop involved in high volume or batch production.
Rotary Production System machines 3 or all the 4 sides of the component in a single set up.Thus gives better productivity.
Acts like an integrated system With Faceplate tailstock, base plate, fixture mounting brackets, and fixture plate . Further it gives advantages like Quick in change set-up, flexibility, higher clamping torque due to break on both Rotary table and Faceplate tailstock side. HMC jobs can be done on VMC at competitive machine hour rate. In fact, rotary production system has got modular concept design and drop in rotary union for power clamp.
1. Modular Concept Design
2. Drop-in Rotary Union for power clamp
3. Clamps can be without plumbing
Nimble Electric specializes in the design and manufacture of high-performance Motors such as Torque Motors of various types, which finds applications not only in machine tools but also various industries like Agriculture, Aerospace, Automobile and Defense etc.
UCAM Mechatronics is involved in the trading of specialized industrial products and deals with products like Spindles, Bellow Couplings, Torque Limiters, Rotary Union, and Linear Motion Products.
WHAT WE OFFER
Extensive Range of Solutions to Match your Machining Needs
AREAS OF APPLICATION
We serve a host of industries across multifold business environment.
UCAM’s 4 and 5 axis solutions is highly reliable in aerospace industry for machining Titanium and other composite components. Rapid machining with high precision and better workpiece clamping for complex components gives us a competitive edge.
UCAM’s 4 and 5 axis solutions is highly reliable in the Agriculture ndustry for machining Titanium and other composite components. Rapid machining with high precision and better workpiece clamping for complex components gives us a competitive edge.
UCAM’s 4th & 5 Axis Solutions provides errorless repeatability and reliability to automobile industry for machining brake components, engine components, fuel injection pumps and gear box housing. The new URX Series Rotary Table and Rotary Production System are used for batch and mass production.
UCAM advanced 4 & 5 Axis Solutions gives Incredible Stability & outstanding performance to medical equipment & Orthopaedic Implants manufacturing industry. Backed by advanced technology, comprehensive system and compact design the large swing tilting table ensures excellent precision while machining orthopaedic implants.
UCAM’s 4 and 5 axis solutions are highly reliable in mining industry for machining Titanium and other composite components. Rapid machining with high precision and better workpiece clamping for complex components give us a competitive edge.
It is my pleasure to provide this letter of recommendation on behalf of UCAM Pvt Ltd., I have worked with UCAM on several development projects, and my experience doing business with them has always been an enjoyable one. UCAM never fails to deliver in the quality of service that they provide. They have continually approached our projects with proficiency, and the level of responsiveness they offer during those crucial times is reassuring. They are not only capable, but also down to earth and incredibly easy to work with.
I would not hesitate to recommend UCAM Pvt Ltd to anyone requiring complete end-to-end solutions for 4th & 5th Axis Customised Solutions.
Luigi Ranieri - General Manager
“We at Mollart have had a long relationship with UCAM. They are an extremely professional company that look onto the details of your requirements and ensure they offer the correct solution to your needs. I can recommend these guys for their products that I purchase and can be confident that they will show the same attention to detail with new clients as well as old.”
Ian Petitt - Managing Director
"I Visited the UCAM factory for inspection of CNC Rotary Table URH-SQ-800-RH. They have shown all the facilities entire their factory & we are very glad to say that we are a customer of quality supplier that's the "UCAM". Feel proud that our Indian company is exporting our tables. Have seen good discipline at shop floor & documentation. Good rack systems to keep heavy materials."
Shivraj Ashok Musale - Assistant Manager Production
“UCAM has ensured that our operations are running on the cutting edge with the latest methods and improvements in the Machine Tool Industry. We appreciate the attitude and experience of UCAM’s technicians and personnel. Continuous customer service and support are provided long after purchase. What makes relation more efficient is the quick and straight-to-point communication for inquiries that happen during the implementation of a new solution for our company. Constant development, partner relations and full involvement in ongoing projects make this co-operation long-lasting and valuable.”
Paweł Paśnicki - Member of the Board, Business Development and R&D Director
“We hereby appreciate special efforts taken by UCAM’s design engineer Mr. Krishna to modify the design of bracket. Convey our appreciation for his expert efforts extended to us for this trouble- shooting. We also take the opportunity to appreciate UCAM management team for looking after sincere business relations apart from professional atmosphere.”
